Forced Convection Heat Transfer Convection is the mechanism of heat transfer through a fluid in the presence of bulk fluid motion. For forced convection tests a variable-speed fan draws air up through the duct and across the surface.
Solved 1 For The Convective Heat Transfer Experiment Chegg Com
Water free convection 15100.
. In the forced convection the fluid to be heated is blown or pumped past the heated surface by employing a pump or a fan while in the natural or free convection fluid flow is naturally achieved based. The physical properties µ k ρ c p of a fluid are temperature dependentUndoubtedly the accuracy of the results obtained by using theoretical relations and the dimensionless empirical correlations would depend upon the temperature. Forced Convection Full technical laboratoryresearch report This is my last full tech and last lab report overall.
This results in a larger total heat transfer for the forced convection than the free convection. The results from pin fins made of copper aluminum and stainless steel showed. Forced convection It is assumed that the velocity of the fluid is zero at the wall this assumption is called no-slip condition.
A report on heat exchangers will be done in place of an actual experiment. After all valve bring the cylinder of carbon dioxide is closed temperature changes with time through position when heat flows from which hot cloth to desktop the cooler material inside of lawn shape. Air free convection 525.
Free and Forced Convection Power Input W Air Speed ms Free Convection 5 0 10 15 20 Forced Convection 20 0 2 4 6 8. After the system was got steady state condition each values from the T1 to T8 were noted. To bring all produce before filling with carbon dioxide for the.
In this article we will discuss about the empirical correlations for free and forced convection. Bulk Temperature and Mean Film Temperature. To make fundamental measurements of both free and forced convection heat transfer along with measurements of flow velocity and turbulence intensity.
Thermocouples measure the air temperature upstream and downstream of the surface and the temperature at the heat transfer surface. I am glad it has all finally come to an end after spending numerous late nights getting these reports. Convection is classified as Natural or free and Forced convection depending on how the fluid motion is initiated.
Furthermore in free convection the fluid motion is caused by means such as gravity buoyancy rise and fall of warmer can cooler fluid respectively etc and in forced convection the flow of fluid is forced over a surface or in a tube through internalexternal means fans pumps etc. Armfield HT19 Free and Forced Convection Heat Transfer 12 Procedure 121 Natural convection To make natural convection firstly the plate was heated up by the resistance with 8 12 15 and 20 volts respectively. Forced Convection Furnaces Market Report presents a complete assessment of the market and contains a market forecast market share market size future trend key players current growth factors and industry validated market data.
View Lab 2 Free and Forced Convectionpdf from ENGR 3930U at University of Ontario Institute of Technology. View 288087381-Hamza-Hmt-Lab-Reportpdf from ENGR 2023 at Sunway University College. FREE AND HEAT AND MASS FORCED TRANSFER CONVECTION LAB REPORT Submitted to.
Forced Convection Heat Transfer 81 Introduction The general definition for convection may be summarized to this definition energy transfer between the surface and fluid due to temperature difference and this energy transfer by either forced external internal flow or natural convection. Abstract The purposes of this experiment are to determine pin fin effectiveness and convective heat transfer coefficients for free and forced convection over pin fins of differing length and material. Top 11 Aug 2013 Free and Forced Convection Lab Report Free download as.
The forced convection setup results in an increase in dissipated heat in the exiting of the fluid into the. 0 3 minutes read. Pin Fin Lab Report Example Names ME331 Lab 04122017.
In natural convection any fluid motion is. Mohammed Zaid Shaikh H00114083 Forced This document contains a report on forced convection around a cylindrical copper rod of diameter 00125 m Covection Thermo lab Report FORCED CONVECTION THERMO LAB REPORT INTRODUCTION This report covers the heat transfer rate from a cylindrical copper rod to the surrounding air moving at a certain fixed. 40 out of 41 students submitted a lab report for the la.
For free convection tests the heated air rises from the surface and up the duct. Steam or for laminar forced convection inside a circul ar tube in the hydrody-. Below will follow the theoretical aspects of both forced.
Experiment 8 Free And Forced Convection From Flat Finned And Pinned Plates Experiment Aim of this Experiment Free and Forced convection from Flat Finned and Pinned Plates experiments enables students to investigateheat transfer from various surfaces in free and forced convection. LABORATORY REPORT Heat Transfer NUCL 3930 Laboratory 2 Free Forced Convection Nuclear. Convection is classified as natural or free and forced convection depending on how the fluid motion is initiated.
To gain a working knowledge of the hot film anemometer. Division it is subdivided into free and forced convection. As a result the heat transfer from the solid surface to the fluid layer adjacent to the surface is by pure conduction since the fluid is.
Laboratory Experiment in the Free Convection of a Vertical Heated Constant Temperature Plate Using LabVIEW. Ahmad Adnan Submitted by. Alfonso Figueroa F4 42415 printed 5222016 Figueroa_Forced_Convection_FullTech_report Post-Reflection Experiment 6.
Edgar Clausen and William Penney. Air or superheated steam forced convection 30300. Read Full Article Convection is the mechanism of heat transfer through that occurs between a solid surface the surrounding fluid in.
Laboratory DemonstrationsExperiments In Free And Forced Convection Heat Transfer Author. Free and Forced Convection from a Heated Cylinder. Harshali 2 days ago.
Free Forced Convection Lab Data P W T 1 C Surface-Air Temperature Difference T S-T A P W T 1 C T 8 C T 7. In the next section of the report the procedure used to complete the actual experiment is shown.
Planets Crossword Puzzle Worksheet Plate Tectonics Printable Crossword Puzzles Science Worksheets
Free Forced Convection Lab The Following Laboratory Consists Of Experiments Conducted To Gain An Understanding Of Free And Forced Convection An Enclosed Column With A Finite Volume In Which Specialized Inserts
Don T Know The Difference Between Oven And Incubator Check This Out More Details At Www Escoglobal Com Esco Escoglobal Choose The Cure Microbial Thermal
Pin By Sargodha Sgdabdullahcampus On Teaching Social Studies Heat Transfer Conduction Convection Radiation Convection
Solved Table 1 Table Of Measurements Free Convection Chegg Com
Pdf Experimental Investigation Of Forced Convection On Square Micro Pin Fins

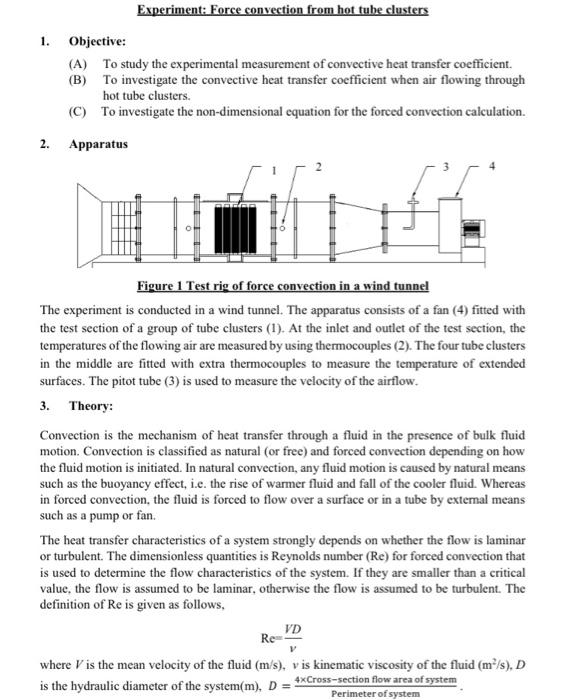

Solved 1 Experiment Force Convection From Hot Tube Chegg Com
